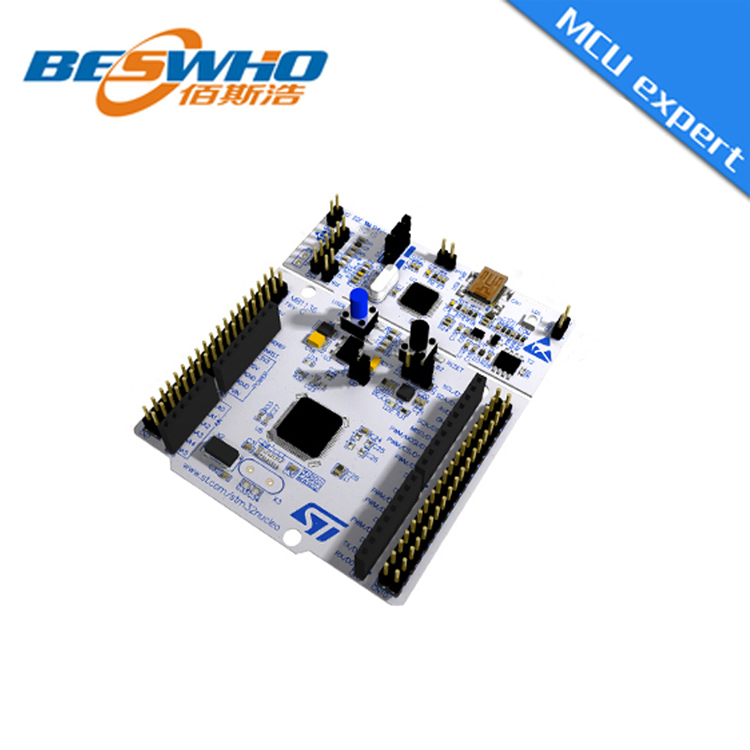

NUCLEO-L053R8 Development Board STM32L053R8 MCU ST LINK V2 1 Debugger Programmer V3 Connectivity Original ST Board Beswho
- Silicon Manufacturer::STMicroelectronics
- No. of Bits::32bit
- Silicon Family Name::STM32L0xx
- Core Architecture::ARM
- Silicon Core Number::STM32L053R8
- Kit Contents::Dev Board STM32L053R8
- Part number:NUCLEO-L053R8 Development Board STM32L053R8
- Supplier::Shenzhen Beswho Electronic Technology Co., Ltd.
- Type:Development Board STM32L053R8
- Lead times:1-3 Days
- Type:Development board
- Place of Origin:CN;GUA
- D/C:2019+
- Package:finished product
- Model Number:NUCLEO-L053R8
- Brand Name:ST
- Description:NUCLEO-L053R8 Development Board STM32L053R8

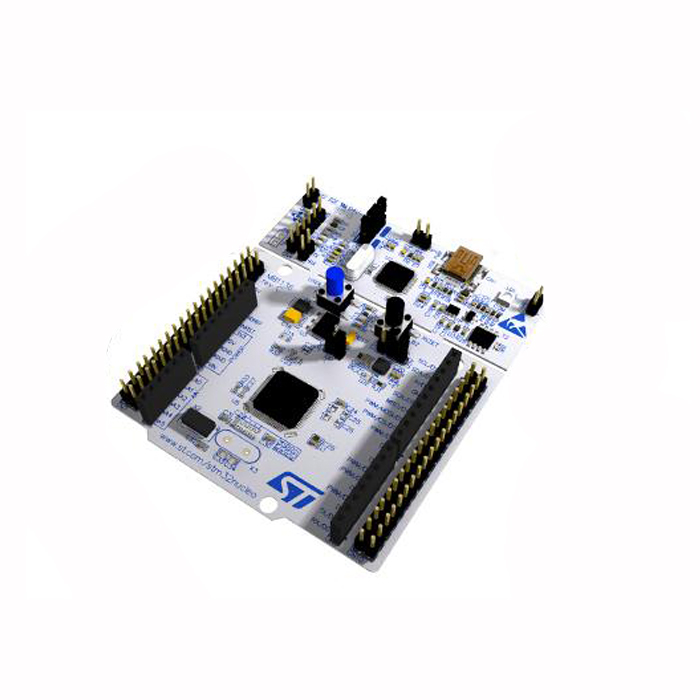

NUCLEO-L053R8 Development Board STM32L053R8 MCU ST LINK V2 1 Debugger Programmer V3 Connectivity Original ST Board Beswho
Description:
The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.
The Ardui™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.
The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.
Feature:
- STM32 microcontroller with LQFP64 package
- STM32L053R8T6 ( 64K FLASH )
- Two types of extension resources
- Arduino Uno Revision 3 connectivity
- STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
- mbed-enabled (mbed.org)
- On-board ST-LINK/V2-1 debugger/programmer with SWD connector
- selection-mode switch to use the kit as a standalone ST-LINK/V2-1
- Flexible board power supply
- USB VBUS or external source(3.3 V, 5 V, 7 - 12 V)
- Power management access point
- Three LEDs
- USB communication (LD1), user LED (LD2), power LED (LD3)
- Two push buttons: USER and RESET
- USB re-enumeration capability: three different interfaces supported on USB
- Virtual Com port
- Mass storage
- Debug port
- Comprehensive free software HAL library including a variety of software examples
- Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs
| Product Attributes | Select All | |
| Categories | Development Boards, Kits, Programmers | |
|---|---|---|
| Evaluation Boards - Embedded - MCU, DSP | ||
| Manufacturer | STMicroelectronics | |
| Series | STM32L0 | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | MCU 32-Bit | |
| Core Processor | ARM® ®-M0+ | |
| Operating System | - | |
| Platform | Nucleo-64 | |
| Utilized IC / Part | STM32L053R8, mbed-Enabled Development | |
| Mounting Type | Fixed | |
| Contents | Board(s) |
