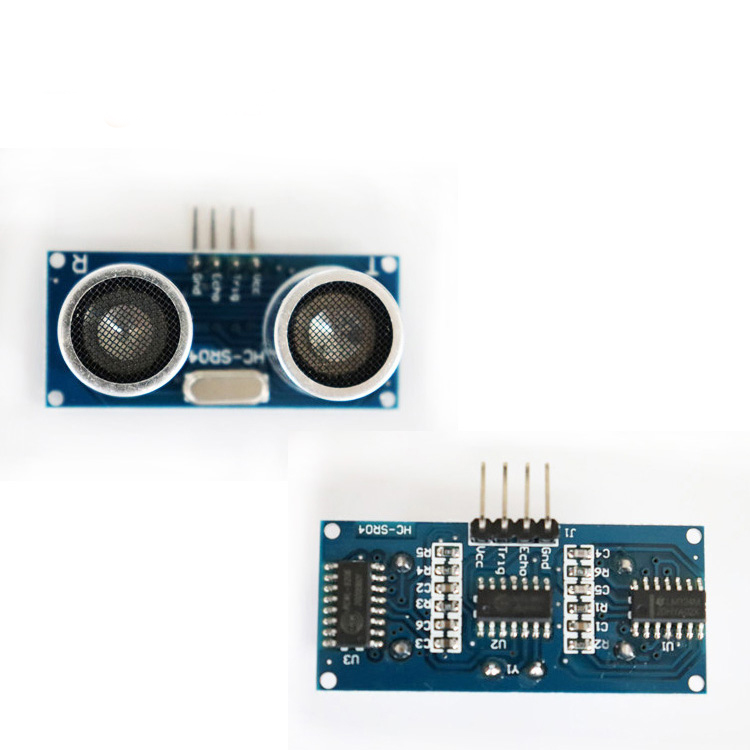

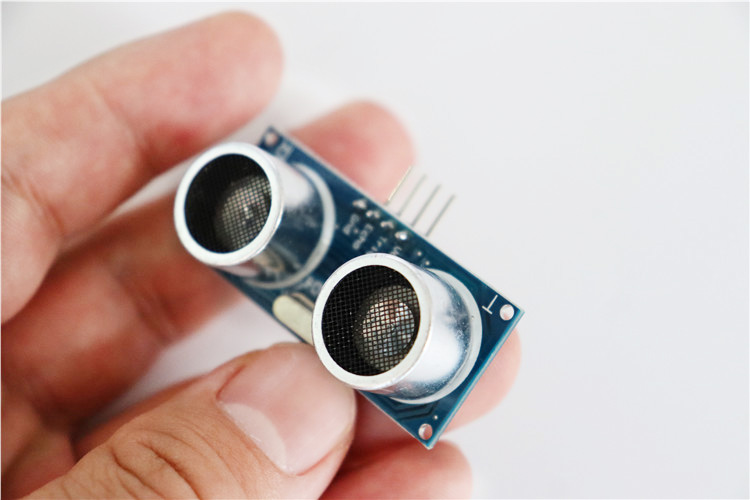

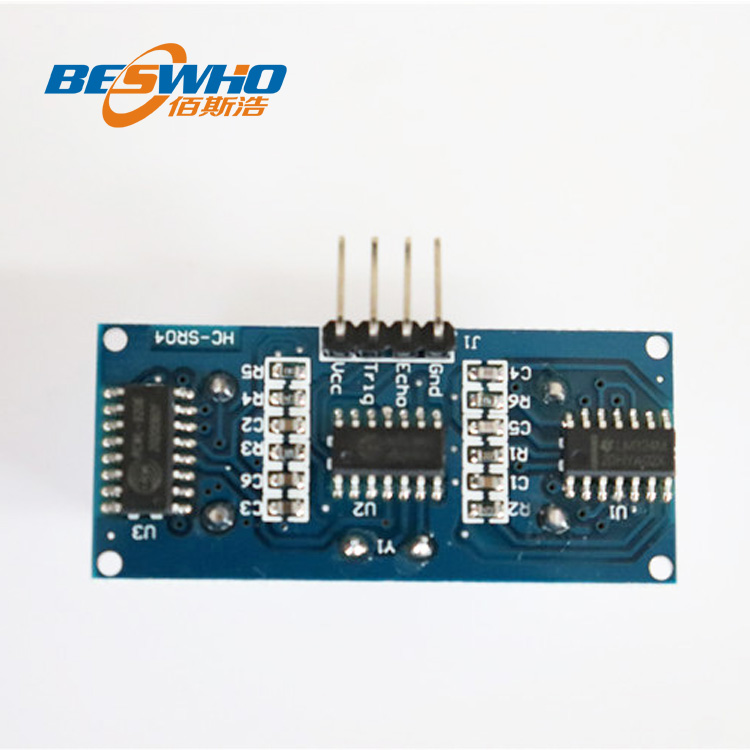

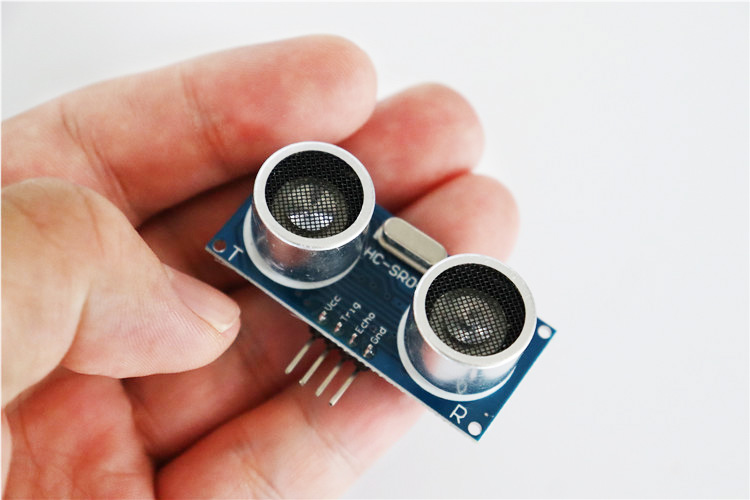

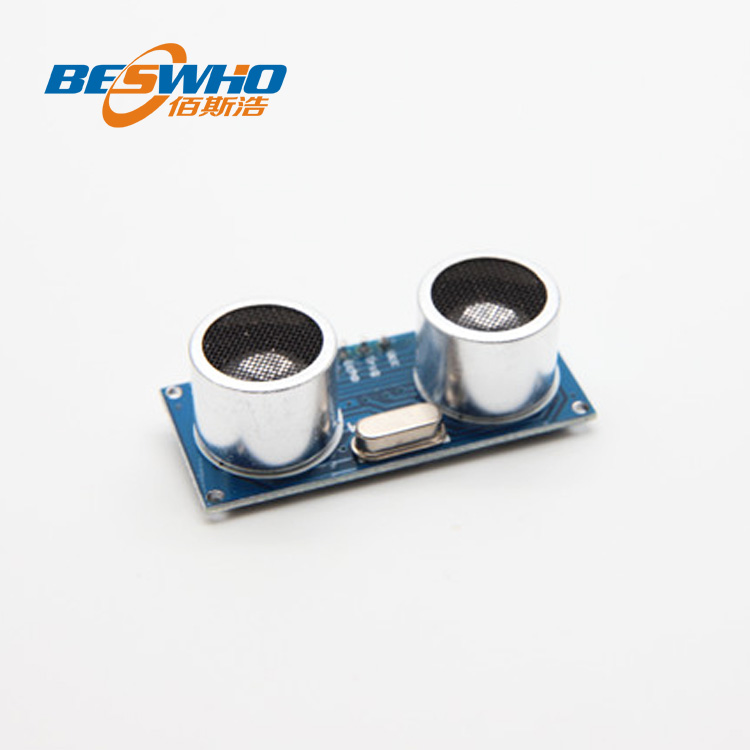

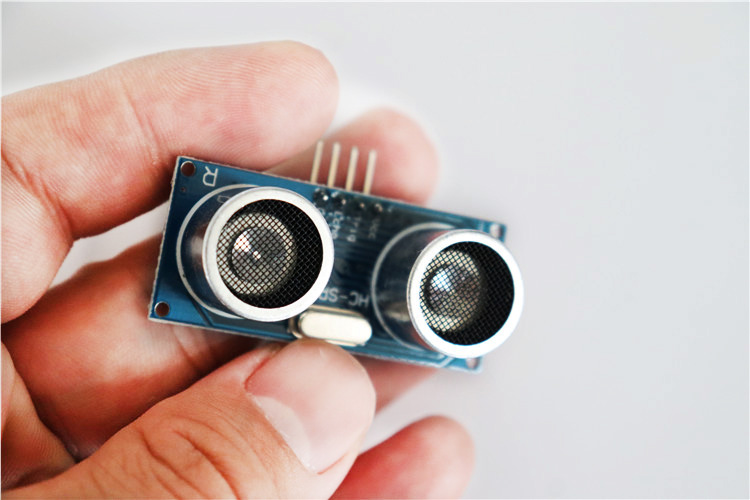

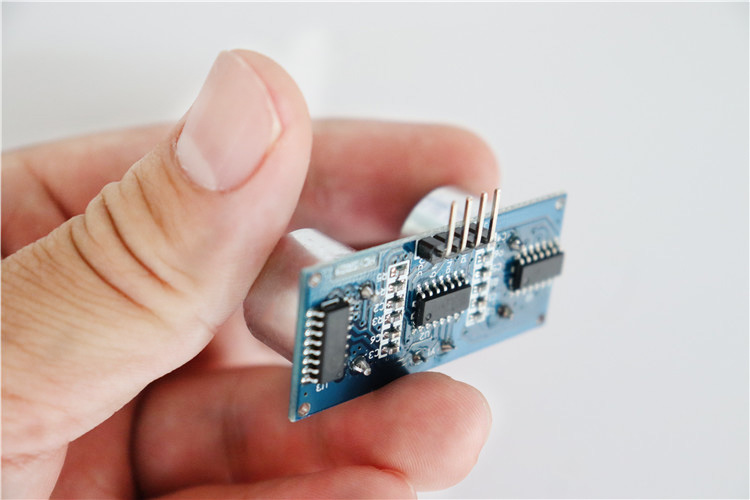

HC-SR04 Ultrasonic Ranging Sensor Module 3-5.5V Wide Voltage Distance Meter Module Hcsr04
HC-SR04
Delivery
EXW
minimum order
10 pieces
Supply Ability
10000pieces / Week
Country of Origin
Shenzhen
Stock Time
7-15Day
Quantity
US $1.00
/ pieces
Unable to ship to shipping address, please feedback to us
- Place of Origin::Guangdong, China
- Brand Name::original
- Typ::Electronic products
- Description::Ultrasonic Sensor Module
- Usage::Speed Sensor
- Detection distance::2cm - 450cm
- Package::new
- MOQ:1 Piece
- In Stock::Contact me
- Lead time::1-7days
- Type:Ultrasonic sensor module
- Place of Origin:CN;GUA
Product Description
HC-SR04 Ultrasonic Ranging Sensor Module 3-5.5V Wide Voltage Distance Meter Module Hcsr04
Description:
Multifunctional Sensor Development Tool Ultrasonic Sensor Module
| product properties | Attribute value | |
|---|---|---|
| OSEPP Electronics | ||
| Multifunctional sensor development tool | ||
| Evaluation Modules | ||
| Ultrasonic Sensor | ||
| 5 V | ||
| Blister Card | ||
| trademark: | OSEPP Electronics | |
| product type: | Multiple Function Sensor Development Tools | |
| Factory packing quantity: | 6 | |
| Subcategory: | Development Tools | |
| unit weight: | 113.398 g |
Working Voltage : 5V(DC);
Static current: Less than 2mA;
Static current: Less than 2mA;
Output signal: Electric frequency signal, high level 5V, low level 0V;
Sensor angle: Not more than 15 degrees;
Detection distance: 2cm - 450cm;
High precision: Up to 0.3cm;
Input trigger signal: 10us TTL impuls;
Module works principle:using IO trigger distance, the high signal to at least 10us;
Module automatically sends eight 40khz square wave, automatically detects whether a signal return ;
A signal back, through the IO output a high electrical level, high electrical level duration is: the ultrasound time from launch to return. Test distance = (time of the high electrical level * speed of sound (340M / S)) / 2;
1pcs HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor.
Sensor angle: Not more than 15 degrees;
Detection distance: 2cm - 450cm;
High precision: Up to 0.3cm;
Input trigger signal: 10us TTL impuls;
Module works principle:using IO trigger distance, the high signal to at least 10us;
Module automatically sends eight 40khz square wave, automatically detects whether a signal return ;
A signal back, through the IO output a high electrical level, high electrical level duration is: the ultrasound time from launch to return. Test distance = (time of the high electrical level * speed of sound (340M / S)) / 2;
1pcs HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor.
