Electronic components HC-05 6pin Bluetooth Module
Electronic components HC-05 6pin Bluetooth Module
Product Description:
This module can be set to a transmitter or receiver, transmitter could pairing with receiver , receiver and receiver or transmitter and transmitter can't communication between, receiver could pairing with computers and cell phone bluetooth , when buying, the default for receiver.
Commercial Series: Bluetooth module board Series;
With LED indicator light, use 150mA and 3.3V regulation chip;
With VCC.GND.TXD.RXD foot for the Bluetooth;
With"Re-seach"button(ON/OFF/WAKE foot for it , external MCU outinput"High level"can control module to re-seach);
Compatible with bluetooth master module".slave module"or master-slave(whole) module;
Input voltage: 3.3~6V;
Size: 1.55cm*3.98cm;
Note:
input power supply 3.3~6V, Prohibit more than 7V;
No"Automatically prevent power supply peversing func", so please correctly connect power supply.
Specification:
| 1. It is HC-05. |
| 2. Use the CSR mainstream bluetooth chip, bluetooth V2.0 protocol standards. |
| 3. Module working voltage 3.3 V. |
| 4. Potter default rate of 9600, the user can be set up. |
| 5. The core module size : 28 mm x 15 mm x 2.35 mm. |
| 6. Working current: matching for 30 MA, matching the communication for 8 MA. |
| 7. Dormancy current: no dormancy. |
| 8. Used for GPS navigation system, water and ity gas meter reading system. |
| 9. With computer and bluetooth bluetooth adapter, PDA, seamless connection equipment |

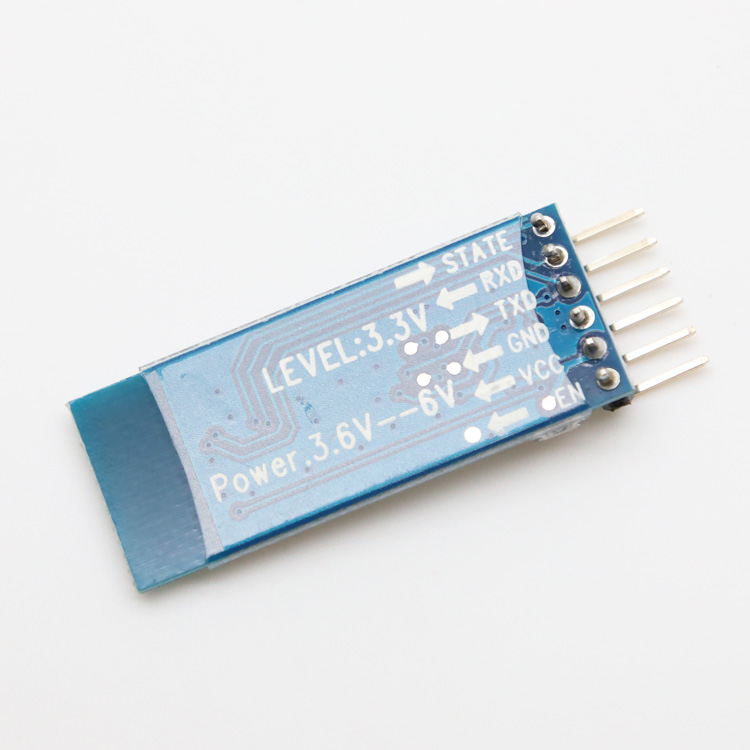

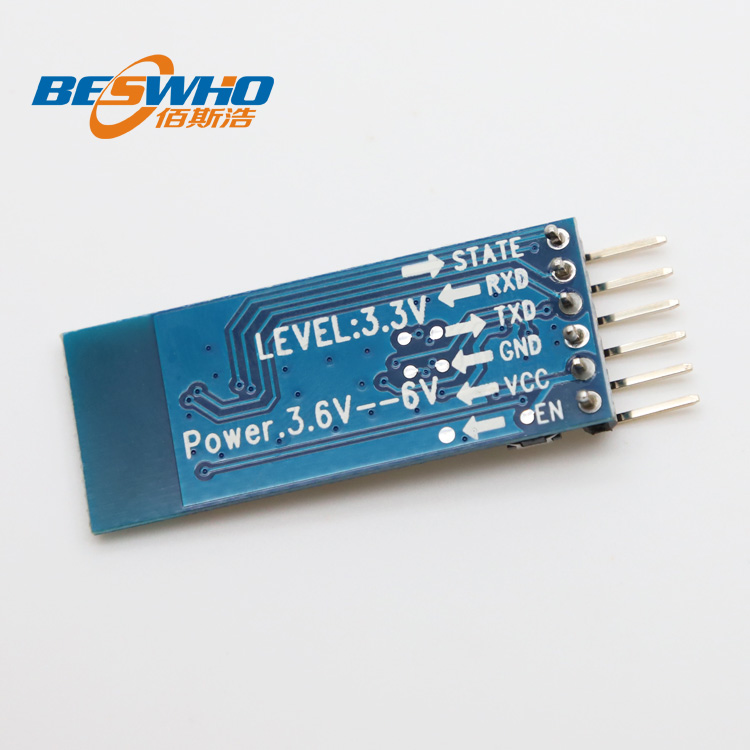

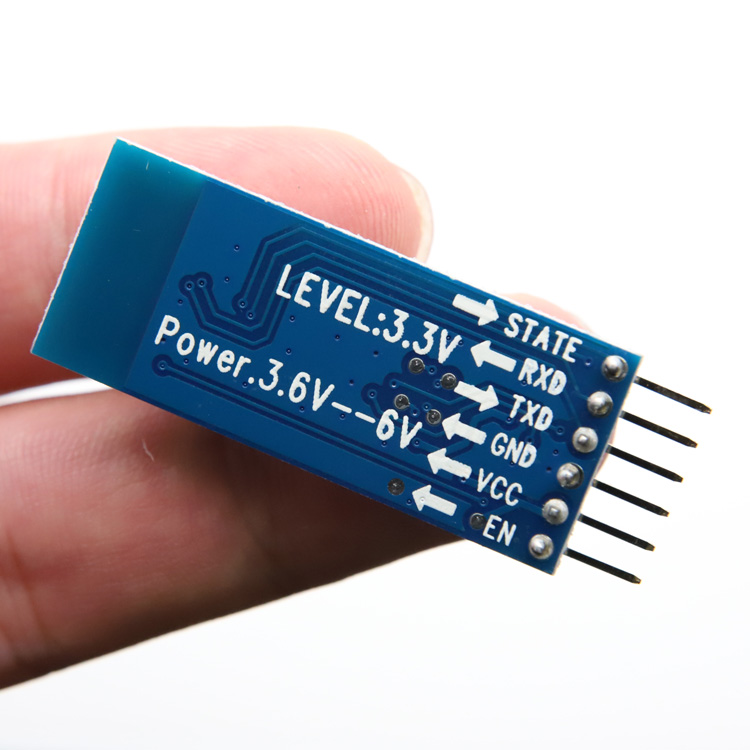

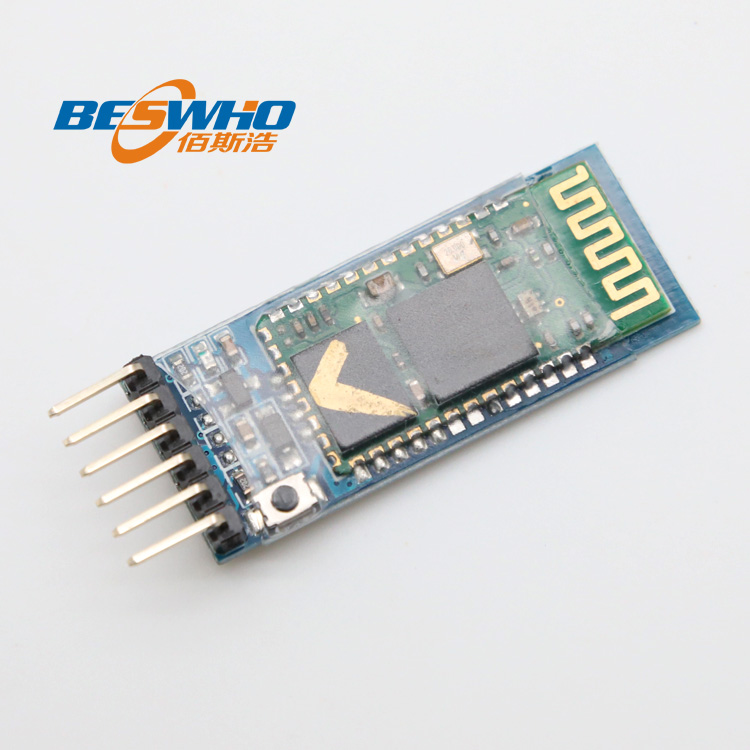

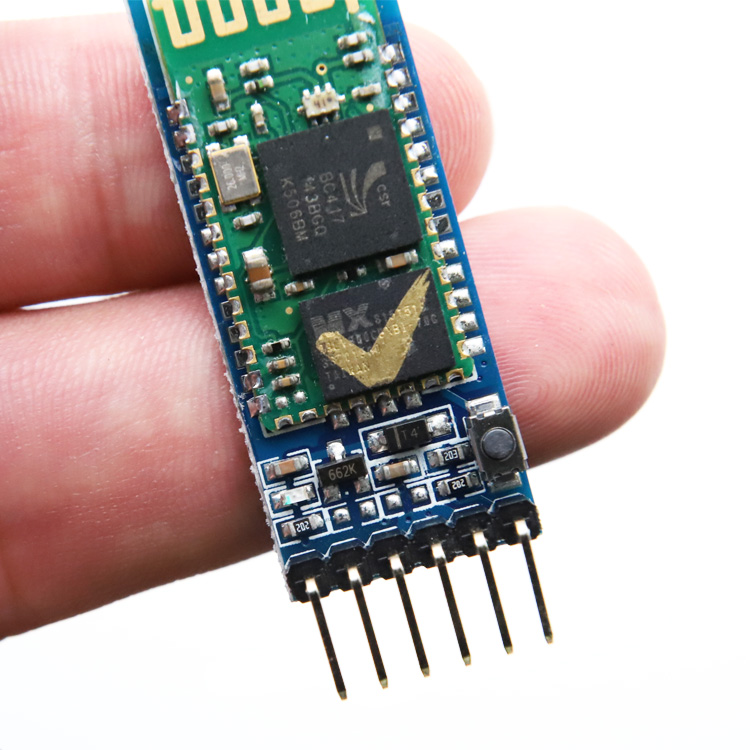

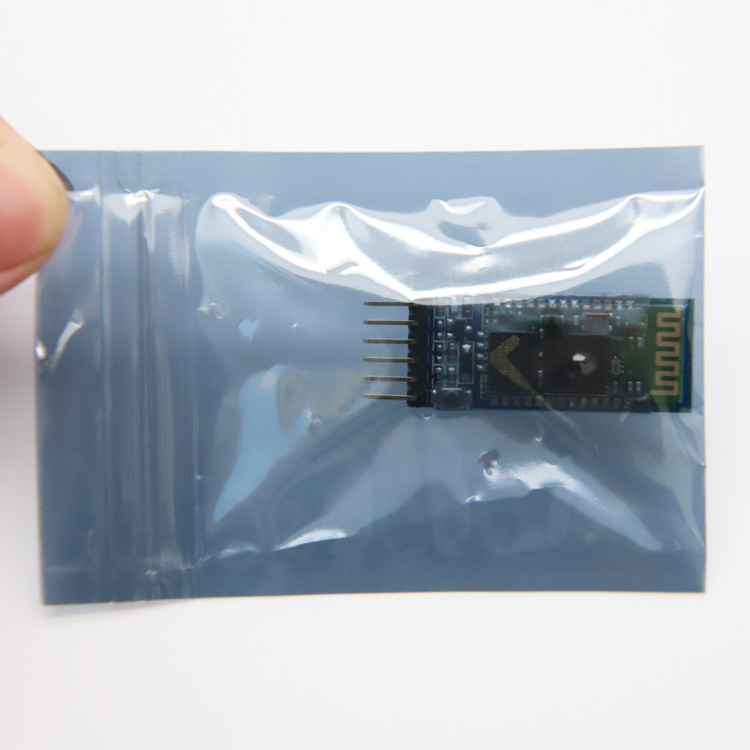

Product Pictures:
