Electronic Components CC3120BOOST Development Board
CC3120BOOST
Delivery
EXW
minimum order
1 piece
Supply Ability
1000piece / Week
Country of Origin
Shenzhen
Stock Time
7-14Day
Quantity
US $35.00
/ piece
Unable to ship to shipping address, please feedback to us
Product Description

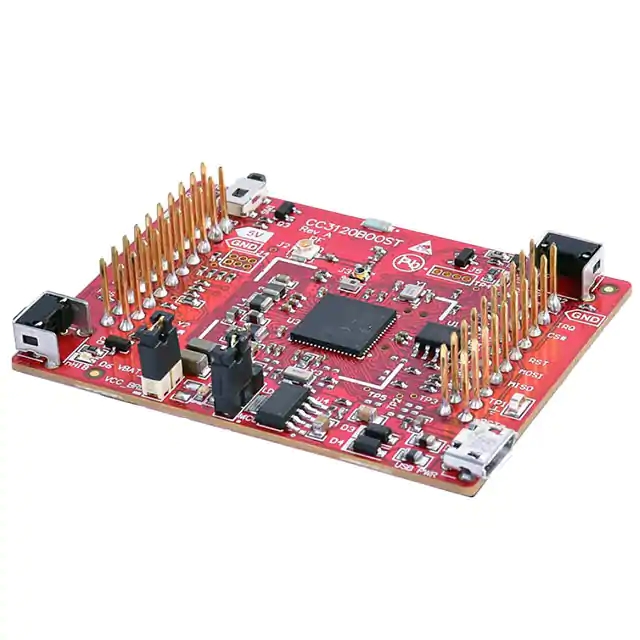

Electronic Components CC3120BOOST Development Board
The CC3120BOOST from Texas Instruments is a SimpleLink Wi-Fi CC3120 wireless network processor BoosterPack plug-in module. The CC3120 BoosterPack module can be connected to a TI MCU LaunchPad development kit thus enabling rapid software development. The CC3120BOOST can be plugged into the Advanced Emulation BoosterPack CC31XXEMUBOOST1 board and connected to a - for MCU emulation. Lastly, it can also be connected to an adapter board (MCU-ADAPT) which allows customers use the CC3120BOOST with additional platforms beyond TI LaunchPad kits.
- CC3120 Wi-Fi network processor in QFN package
- 2x20-pin stackable connectors (BoosterPack headers) to connect to TI LaunchPads and BoosterPacks
- On-board chip antenna with option for U.FL based testing
- Operates from alkaline batteries for low power designs
- Wi-Fi certified at the chip level by the Wi-Fi alliance
- Power from onboard LDO using USB or 3.3V from MCU LaunchPad
- Three push-buttons, two LEDs
- Jumper for current measurement with provision to mount 0.1R resistor for measurement with voltmeter
- 16Mbit serial flash, 40MHz crystal, 32KHz crystal and optional 32KHz oscillator
- 4 layer -B with 6mil spacing and track width
Applications
Embedded Design & Development
Contents
CC3120 BoosterPack board, Micro USB cable, Quick start guide.
