Waveshare Raspberry 1.3 inch OLED Expansion Board Module SPI Display Support Raspberry Pi 4 Jetson Nano
- Name:1.3 inch OLED Expansion Board
- Quality:High Quality
- Package:Anti-static Bag
- D/C:2020
- Brand:Waveshare
- Place of Origin:Guangdong China
- Type:1.3 inch OLED Expansion Board
- Module number:1.3 inch OLED Expansion Board
- Shipping by:DHLUPSFedexEMSHK Post
- Payment:T/T, PayPaml, Western Union, Credit Card
- Warranty(Year):30 days
- Color:Blue
- Package:Yes
- Series:For Home & Student
- After-sales Service:Onsite Training and Inspection
- Products Status:New
- Type:1.3 inch OLED Expansion Board
- Interface Type:usb
- Place of Origin:CN;GUA
- Brand Name:original
Waveshare Raspberry 1.3 inch OLED Expansion Board Module SPI Display Support Raspberry Pi 4/Jetson Nano
[One minute self introduction]
I am a 1.3-inch OLED expansion board for Raspberry Pi, 128x64 resolution, with internal controller, and can communicate with SPI or I2C interface.
Does your Raspberry Pi need a mini display? Come on, Baby!
[My Features]

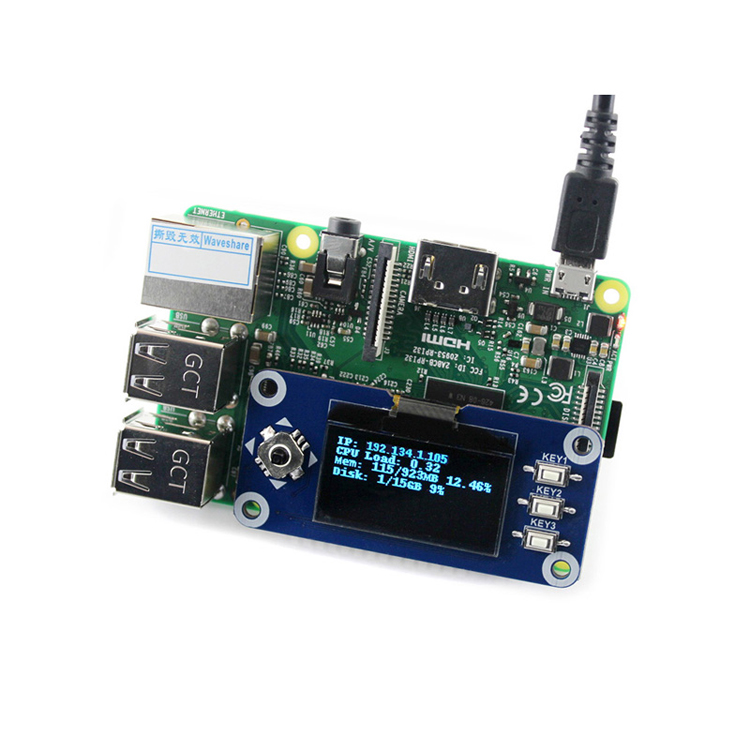

Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards, Jetson Nano

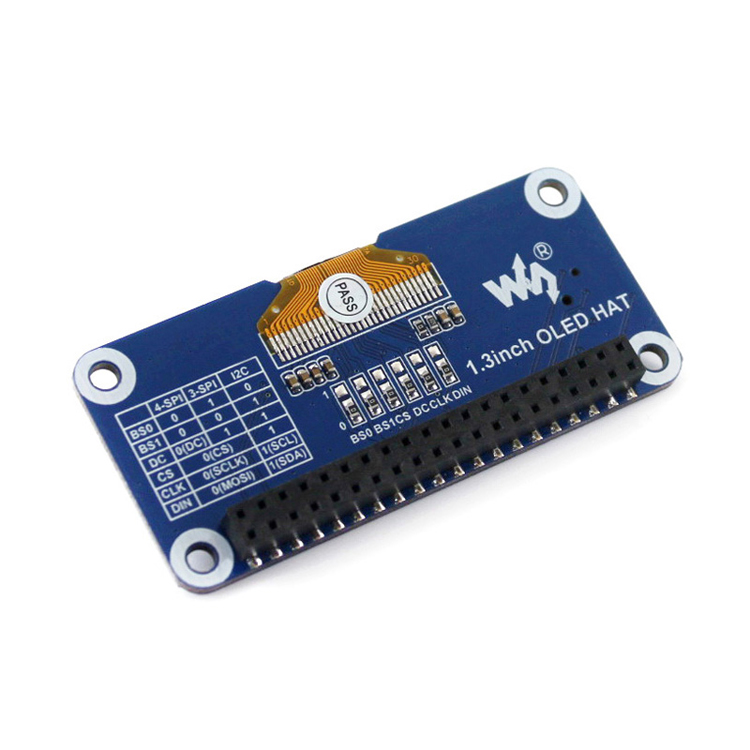

Support 4-wire SPI, 3-wire SPI, I2C three interfaces, the communication method can be selected through resistance
Onboard a joystick and three buttons, simple and practical
Provide a complete supporting information manual (Raspberry/Jetson Nano/Arduino/STM32 and other sample programs)
[My parameters]
Driver chip: SH1106
Support interface: 4-wire SPI, 3-wire SPI, I2C
Display color: blue
Resolution: 128x64
Working voltage: 3.3V

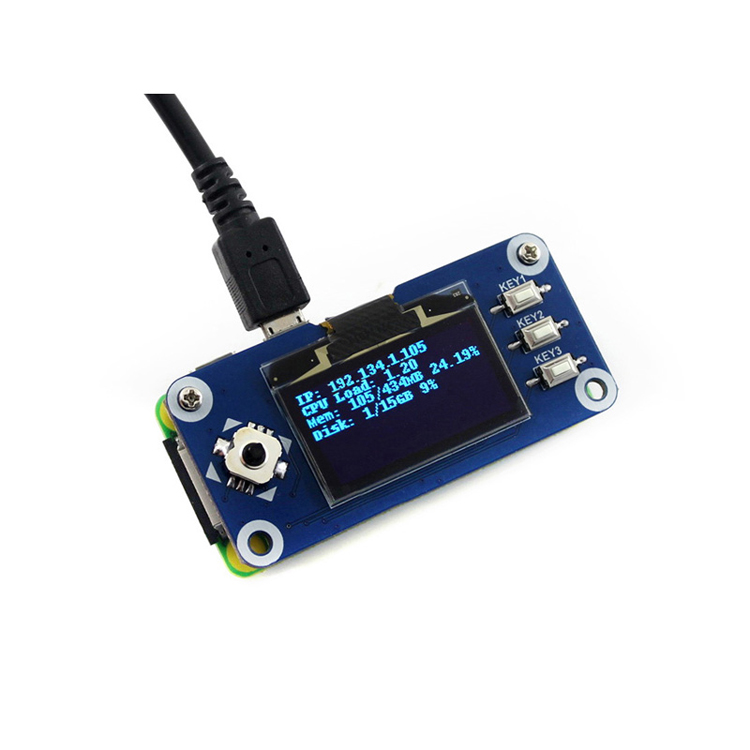

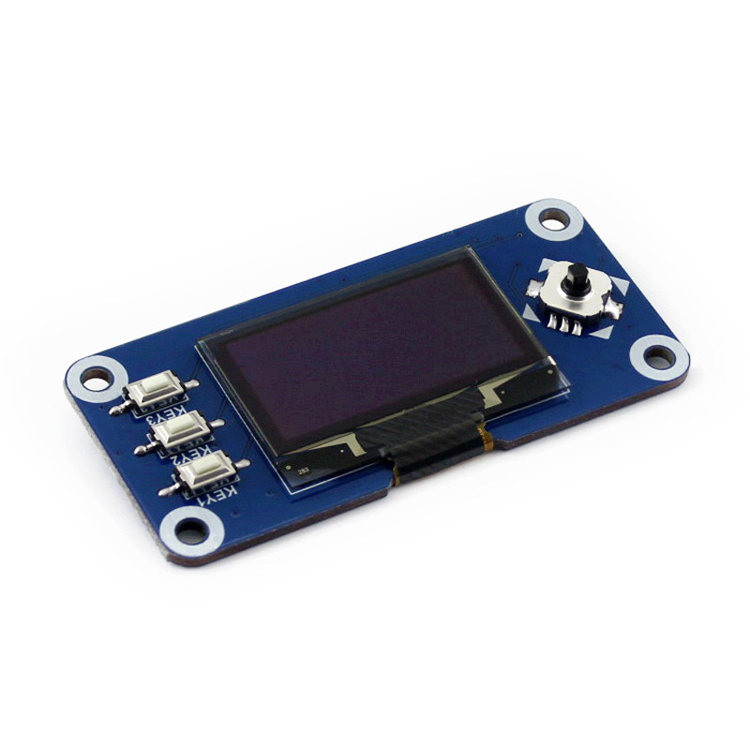

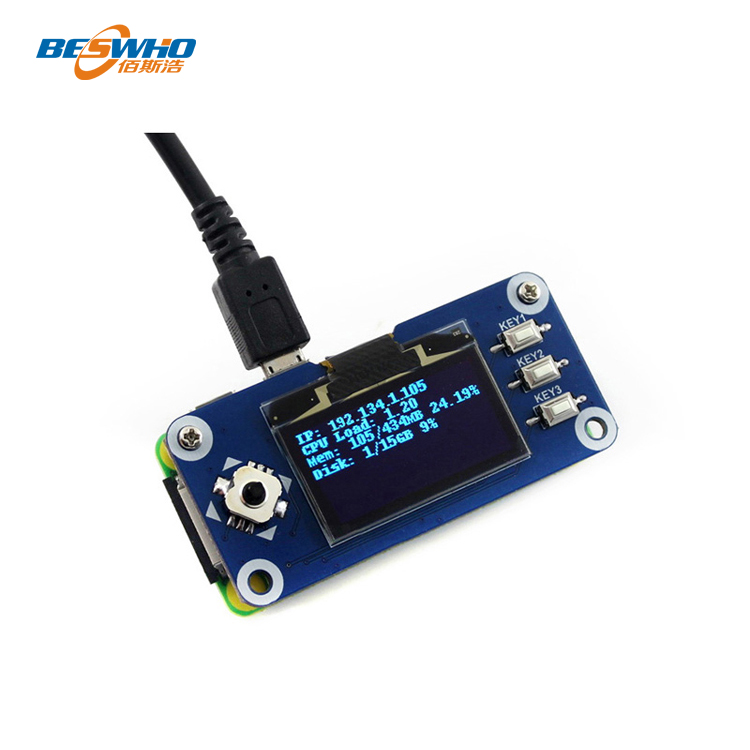

Product Pictures:
