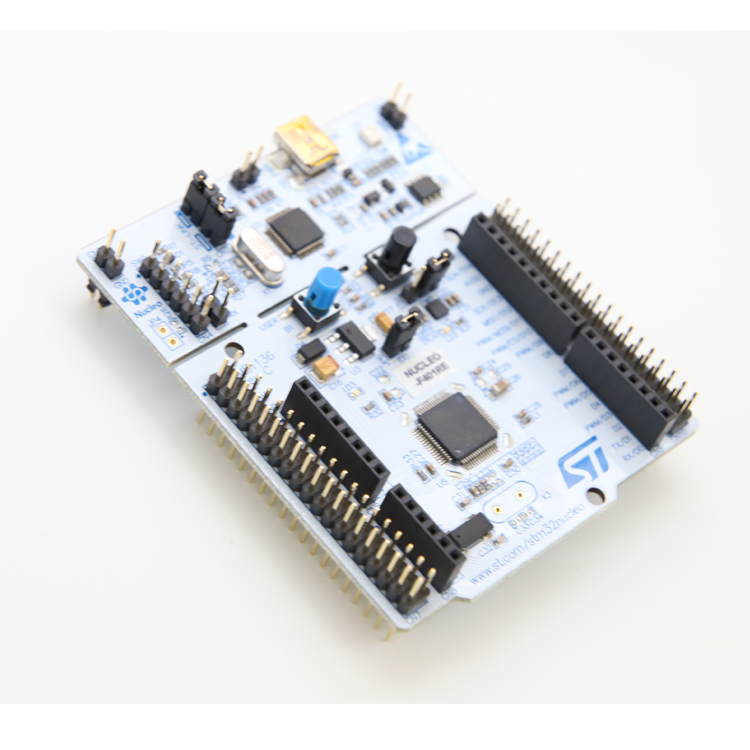

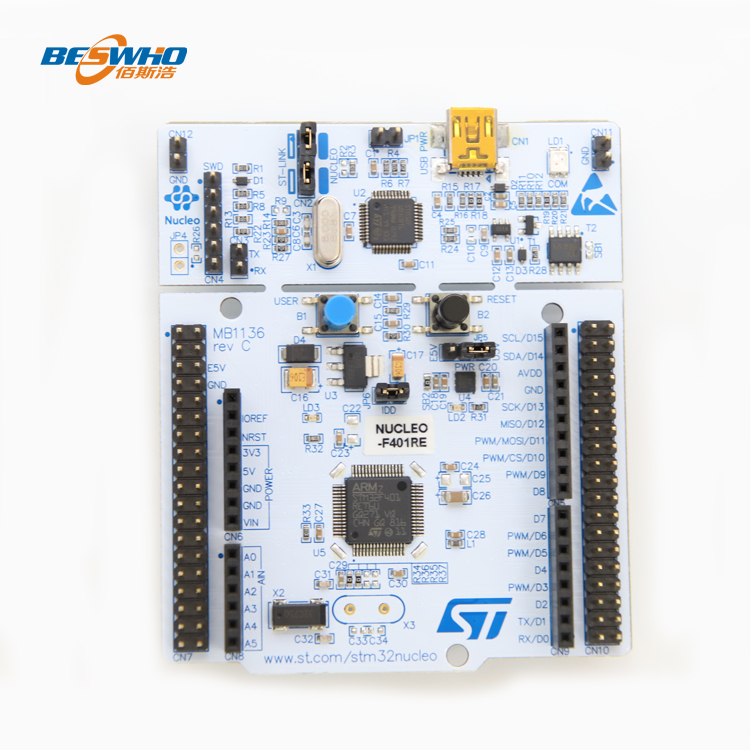

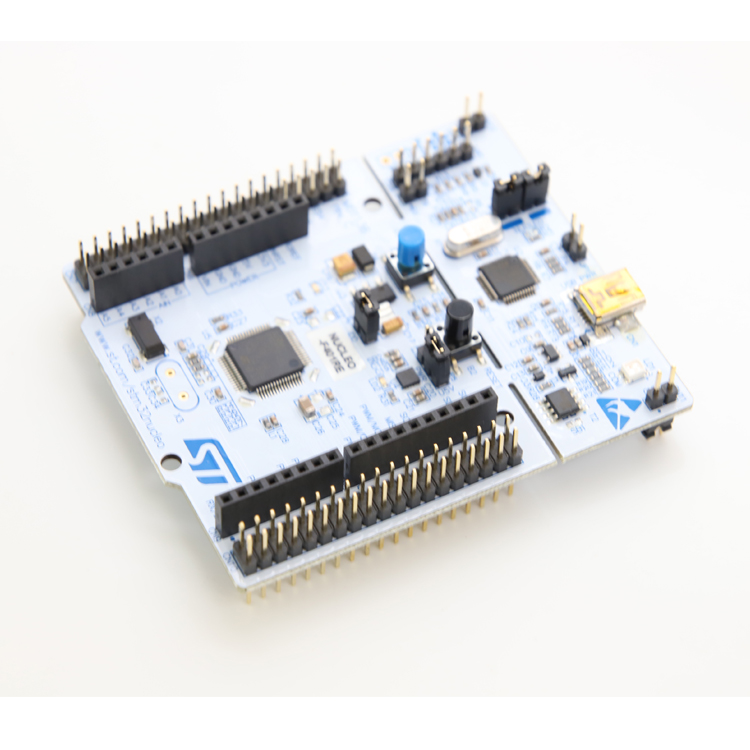

Original ST High Quality Development Board Profession Board STM32F401 NUCLEO-F401RE

• Silicon Manufacturer::STMicroelectronics
• No. of Bits::32bit
• Silicon Family Name::NUCLEO-F401RE ST Development Board
• DATE CODE:19+
• Type:NUCLEO-F401RE ST Development Board
• Core Number:NUCLEO-F401RE
• Payment:PaypalTTWestern UnionTrade Assurance
• Product Name:NUCLEO-F401RE ST Development Board
• Supplier:Shenzhen Beswho Electronic Technology Co., Ltd.
• Part number:NUCLEO-F401RE ST Development Board
• Type:NUCLEO-F401RE ST Development Board
• Place of Origin:CN;GUA
• Brand Name:ST
• Model Number:NUCLEO-F401RE
• Program Memory Type:NUCLEO-F401RE ST Development Board
• Package:Original
• D/C:2019+
• Description:NUCLEO-F401RE ST Development Board
• Module/Board Type:NUCLEO-F401RE ST Development Board

Product Description

Main features:

STM32 microcontroller in LQFP64 package

External SMPS generates Vcore logic power supply (only available on"-P"suffix board)

1 user LED shared with Arduino™

1 user and 1 reset button

32.768 kHz LSE crystal oscillator

Board expansion connector:

Ardui™Uno V3

ST morpho expansion pin header connector with full access to all STM32 I/O

External SMPS experiment dedicated connector (only available on the"-P"suffix board)

Flexible power supply options: ST-LINK USB VBUS or external power supply

Onboard ST-LINK/V2-1 debugger/programmer with USB re-enumeration function. USB supports three different interfaces: mass storage, virtual COM port and debug port

The STM32Cube MCU software package provides a comprehensive free software library and examples

Support multiple integrated development environments (IDE), including IAR™, Keil®, GCC-based IDE, Arm®Mbed™

Compliant with Arm®Mbed Enabled™
