Hot Sale Development Boards ATATMEL-ICE-BASIC Kit Basic Edition ARM Cortex-M AVR Simulator Downloader

Hot Sale Development Boards ATATMEL-ICE-BASIC Kit Basic Edition ARM Cortex-M AVR Simulator Downloader

Product Description:

[Introduction in one sentence]

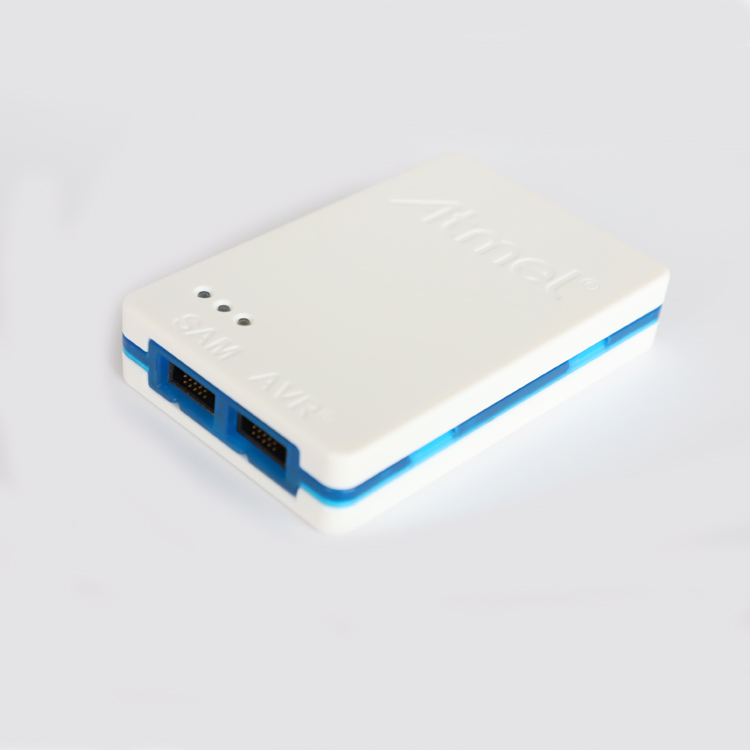

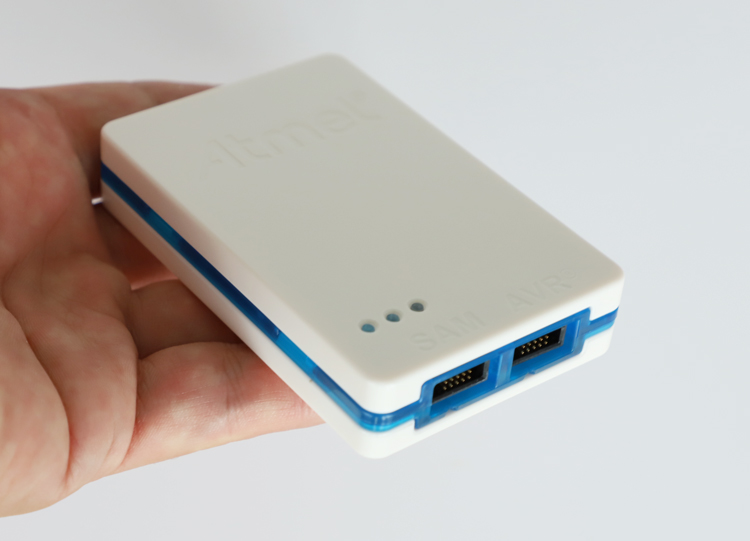

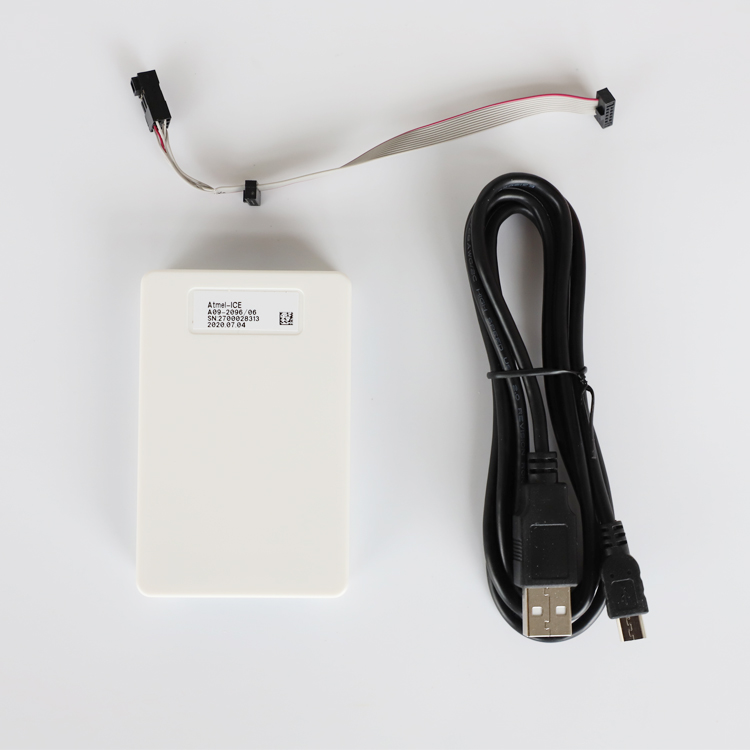

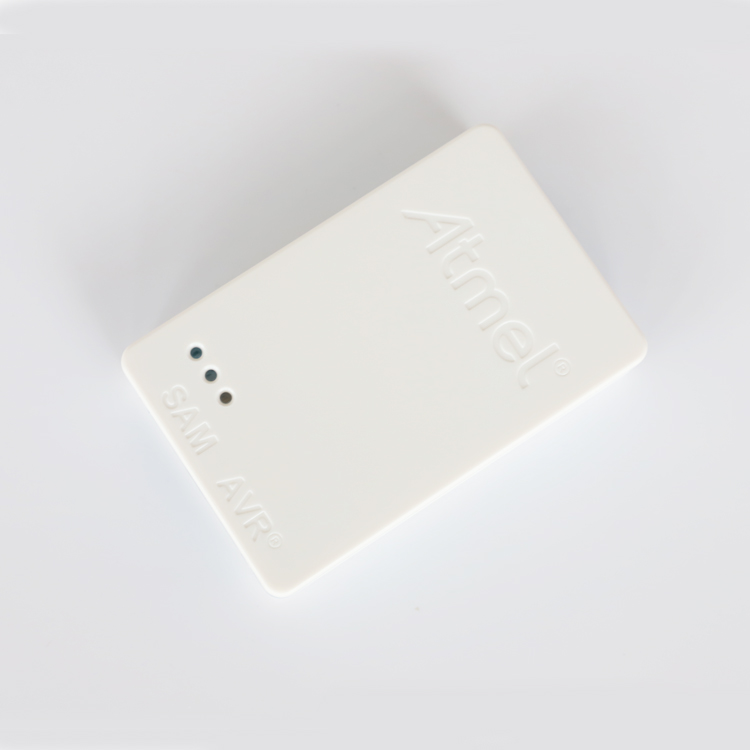

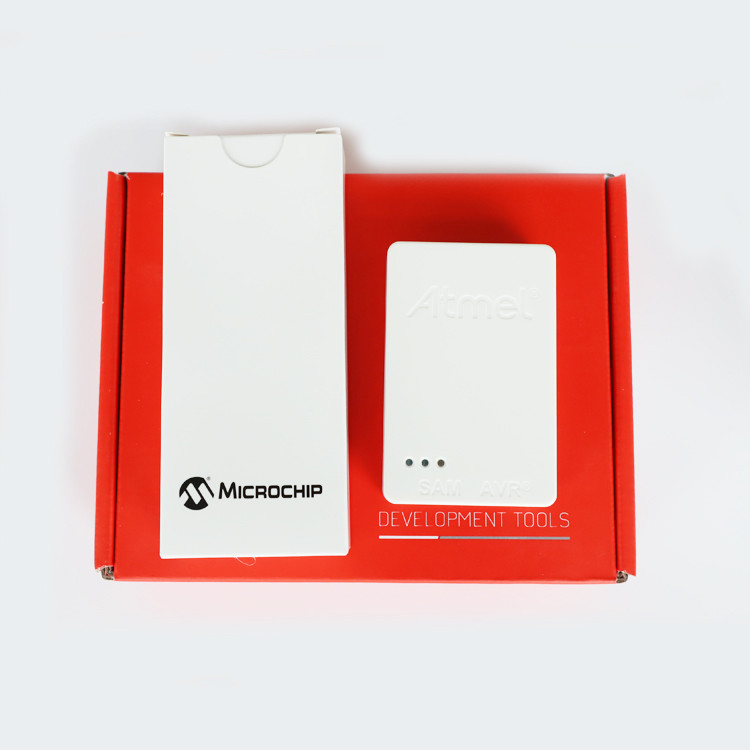

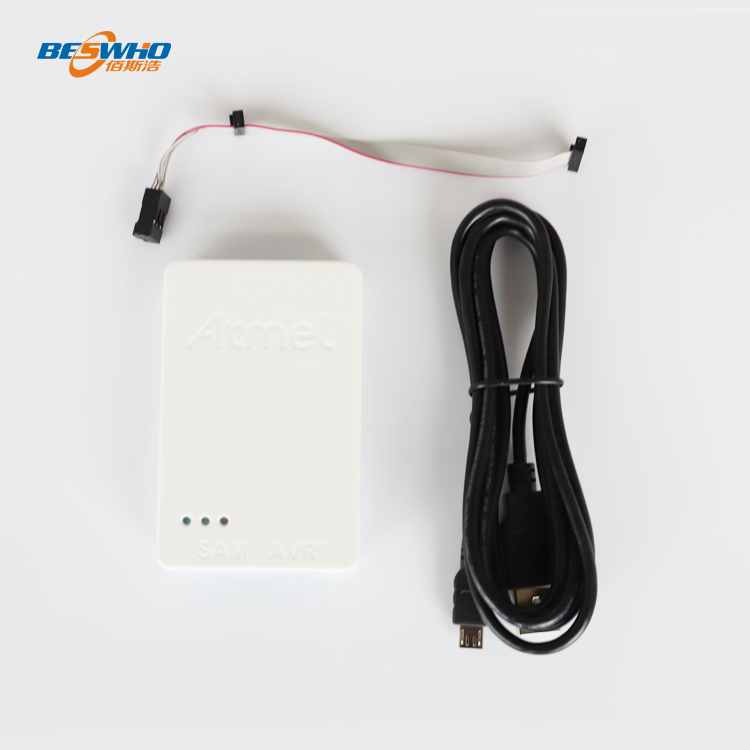

Atmel-ICE is a powerful debugging and programming tool newly launched by Microchip, suitable for Atmel ARM® Cortex®-M's Atmel SAM and AVR® series chips.

[Software I Support]

Support Atmel Studio 6.2 and above
Support ICC8AVR and above
Support burning HEX files generated by ICCAVR, CVAVR, IAR, etc.
[Devices I Support]

Support JTAG and aWIRE interface programming simulation of AVR 32-bit MCUs
Support AVR XMEGA® series JTAG and PDI 2-wire interface programming simulation
Support JTAG and SPI interface programming of AVR 8-bit MCUs, and emulation of JTAG or debugWIRE interface
Support programming simulation of SWD and JTAG interface of MCUs based on Atmel SAM ARM Cortex-M
Support programming of TPI interface of Atmel tinyAVR® 8-bit MCUs
Click to view the detailed list of supported devices: UC3, Mega, SAM, Tiny, Xmega

Feature:

Interface voltage 1.62V ~ 5.5V
JTAG clock 32kHz ~ 7.5MHz
PDI clock 32kHz ~ 7.5MHz
debugWIRE baud rate 4kbit/s ~ 0.5Mbit/s
aWire baud rate 7.5kbit/s ~ 7Mbit/s
SPI clock 8kHz ~ 5MHz
SWD clock 32kHz ~ 2MHz
PC interface USB 2.0 high speed interface
